PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing Class Reference

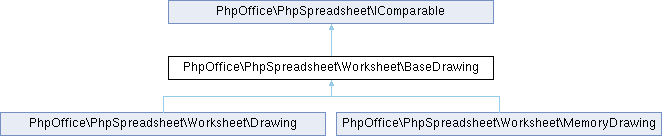

Inheritance diagram for PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing:

Public Member Functions
	__construct ()
	Create a new BaseDrawing.
	__clone ()
	Implement PHP __clone to create a deep clone, not just a shallow copy.
	getCoordinates ()
	getCoordinates2 ()
	getDescription ()
	getEditAs ()
	getFlipHorizontal ()
	getFlipVertical ()
	getHashCode ()
	Get hash code.
	getHeight ()
	getHyperlink ()
	getImageHeight ()
	getImageIndex ()
	getImageWidth ()
	getName ()
	getOffsetX ()
	getOffsetX2 ()
	getOffsetY ()
	getOffsetY2 ()
	getOpacity ()
	getResizeProportional ()
	getRotation ()
	getShadow ()
	getSrcRect ()
	getType ()
	Get Image Type.
	getWidth ()
	getWorksheet ()
	setCoordinates (string $coordinates)
	setCoordinates2 (string $coordinates2)
	setDescription (string $description)
	setEditAs (string $editAs)
	setFlipHorizontal (bool $flipHorizontal)
	setFlipVertical (bool $flipVertical)
	setHeight (int $height)
	setHyperlink (?Hyperlink $hyperlink=null)
	setName (string $name)
	setOffsetX (int $offsetX)
	setOffsetX2 (int $offsetX2)
	setOffsetY (int $offsetY)
	setOffsetY2 (int $offsetY2)
	setOpacity (?int $opacity)
	setResizeProportional (bool $resizeProportional)
	setRotation (int $rotation)
	setShadow (?Shadow $shadow=null)
	setSrcRect ($srcRect)
	setWidth (int $width)
	setWidthAndHeight (int $width, int $height)
	Set width and height with proportional resize.
	setWorksheet (?Worksheet $worksheet=null, bool $overrideOld=false)
	Set Worksheet.
	validEditAs ()

Public Attributes
const	EDIT_AS_ABSOLUTE = 'absolute'
const	EDIT_AS_ONECELL = 'oneCell'
const	EDIT_AS_TWOCELL = 'twoCell'

Protected Member Functions
	setSizesAndType (string $path)
	Set Fact Sizes and Type of Image.

Protected Attributes
string	$coordinates = 'A1'
	Coordinates.
string	$coordinates2 = ''
	Coordinates2.
string	$description = ''
	Description.
string	$editAs = ''
bool	$flipHorizontal = false
bool	$flipVertical = false
int	$height = 0
	Height.
int	$imageHeight = 0
	Pixel width of image.
int	$imageWidth = 0
	Pixel width of image.
string	$name = ''
	Name.
int	$offsetX = 0
	Offset X.
int	$offsetX2 = 0
	Offset X2.
int	$offsetY = 0
	Offset Y.
int	$offsetY2 = 0
	Offset Y2.
int	$opacity = null
	Percentage multiplied by 100,000, e.g.
bool	$resizeProportional = true
	Proportional resize.
int	$rotation = 0
	Rotation.
Shadow	$shadow
	Shadow.
null SimpleXMLElement string[]	$srcRect = []
int	$type = IMAGETYPE_UNKNOWN
	Image type.
int	$width = 0
	Width.
Worksheet	$worksheet = null
	Worksheet.

Constructor & Destructor Documentation

__construct()

PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::__construct

(

)

Create a new BaseDrawing.

Reimplemented in PhpOffice\PhpSpreadsheet\Worksheet\Drawing, and PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing.

Member Function Documentation

__clone()

PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::__clone

(

)

Implement PHP __clone to create a deep clone, not just a shallow copy.

Reimplemented in PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing.

getHashCode()

PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::getHashCode

(

)

Get hash code.

Return values

string

Hash code

Implements PhpOffice\PhpSpreadsheet\IComparable.

Reimplemented in PhpOffice\PhpSpreadsheet\Worksheet\Drawing, and PhpOffice\PhpSpreadsheet\Worksheet\MemoryDrawing.

getSrcRect()

PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::getSrcRect

(

)

Return values

null|SimpleXMLElement|string[]

setSrcRect()

PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::setSrcRect

(

$srcRect

)

Parameters

null | SimpleXMLElement | string[]

$srcRect

setWidthAndHeight()

PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::setWidthAndHeight	(	int	$width,
		int	$height )

Set width and height with proportional resize.

Example: $objDrawing->setResizeProportional(true); $objDrawing->setWidthAndHeight(160,120);

Author

Vincent@luo MSN:kele_.nosp@m.100@.nosp@m.hotma.nosp@m.il.c.nosp@m.om

setWorksheet()

PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::setWorksheet	(	?Worksheet	$worksheet = null,
		bool	$overrideOld = false )

Set Worksheet.

Parameters

bool

$overrideOld

If a Worksheet has already been assigned, overwrite it and remove image from old Worksheet?

Member Data Documentation

$imageHeight

int PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::$imageHeight = 0

protected

Pixel width of image.

See $height for the size the Drawing will be in the sheet.

$imageWidth

int PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::$imageWidth = 0

protected

Pixel width of image.

See $width for the size the Drawing will be in the sheet.

$opacity

int PhpOffice\PhpSpreadsheet\Worksheet\BaseDrawing::$opacity = null

protected

Percentage multiplied by 100,000, e.g.

40% = 40,000. Opacity=x is the same as transparency=100000-x.

---

The documentation for this class was generated from the following file:

• lib/phpspreadsheet/phpspreadsheet/src/PhpSpreadsheet/Worksheet/BaseDrawing.php
